Asymmetrical Spring Clip
GRADE: 316 STAINLESS STEEL - Drop Forged & Load Rated
| ITEM |
A
(size) |
B |
C |
WLL
(lb) |
WT
(lb) |
MI-140-008
|
3" |
0.60" |
0.31"
|
700
|
0.16
|
|
| MI-140-0100 |
4" |
0.75" |
0.40" |
1,350 |
0.31 |
|
The asymmetrical spring clip is made from 316 stainless steel for maximum corrosion resistance. These stainless steel spring clips are ideal for marine and industrial applications. Please note that each clip is proof tested and the break load is approximately 4 times the WLL.
|
|
| ITEM |
A -size |
B |
C |
WLL-lb |
WT-lb |
|
| MI-195-0100 |
3/8" |
0.74" |
0.74" |
400 |
0.30 |
|
| MI-0195-0120 |
7/16" |
1.00" |
4.75" |
540 |
0.43" |
|
NOTE: ALSO AVAILABLE WITH EYE ON SPECIAL ORDER.
BULK ORDERS OF OTHER SIZES MAY BE PLACED ON SPECIAL ORDER. |
|

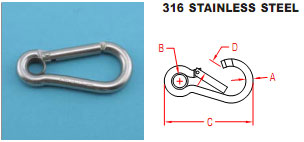

KEY LOCK SPRING CLIP W/ EYE
GRADE: 316 STAINLESS STEEL
| ITEM |
A
(size) |
B
(ID) |
C |
D |
WLL
(lb) |
WT
(lb) |
|
| MI-121-K050 |
3/16" |
0.24" |
2.00" |
0.29" |
200 |
0.04 |
|
| MI-121-K060 |
1/4" |
0.27" |
2.38" |
0.37" | 250 |
0.07 |
|
| MI-121-K070 |
9/32" |
0.35" |
2.88" |
0.40" | 300 |
0.10 |
|
| MI-121-K080 |
5/16" |
0.39" |
3.25" |
0.43" |
400 |
0.16 |
|
| MI-121-K100 |
3/8" |
0.45" |
4.00" |
0.66" |
600 |
0.30 |
|
| MI-121-K120 |
7/16" | 0.59" | 4.75" | 0.70" | 800 | 0.43 |
|
| MI-121-K160 | 1/2" | 0.87" | 6.38" | 1.18" | 1,000 | 0.78 |
|
|
GRADE: 316 STAINLESS STEEL - not load rated
The Spring Clip with Eye is available in a range of sizes from 3/16" to 1/2". This clip is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.
| ITEM |
A
(size) |
B
(ID) |
C |
D | WLL
(lb) |
WT
(lb) |
MI-121-0050 |
3/16" |
0.25" |
2.00" |
0.25" | 120 |
0.04 |
|
| MI-121-0060 |
1/4" |
0.30" |
2.38" |
0.27" |
150 |
0.06 |
|
| MI-121-0070 |
9/32" |
0.32" |
2.75" |
0.34" | 200 |
0.10 |
|
| MI-121-0080 |
5/16" |
0.40" |
3.13" |
0.38" | 280 |
0.15 |
|
| MI-121-0100 |
3/8" |
0.50" |
3.88" |
0.54" | 400 |
0.28 |
|
| MI-121-0120 | 7/16" | 0.60" | 4.71" | 0.65" | 500 | 0.41 |
|
| MI-121-0140 | 15/32" | 0.80" | 5.50" | 0.80" | 750 | 0.58 |
|
| MI-121-0160 | 1/2" | 0.87" | 6.25" | 0.95" | 900 | 0.79 |
|
|
SPRING CLIP 316 STAINLESS STEEL
| ITEM |
A-Size |
B-ID |
C |
D |
E |
WLL -LB |
WT- LB |
|
| MI-120-0050 |
3/16" |
0.32" |
2.00" |
0.25" |
0.24" |
120 |
0.04 |
|
| MI-120-0060 |
1/4" |
0.36" |
2.38" |
0.27" |
0.27" |
170 |
0.06 |
|
| MI-120-0070 |
9/32" |
0.45" |
2.75" |
0.34" |
0.37" |
200 |
0.10 |
|
| MI-120-0080 |
5/16" |
0.48" |
3.13" |
0.38" |
0.37" |
280 |
0.15 |
|
| MI-120-0100 |
3/8" |
0.63" |
3.88" |
0.54" |
0.47" |
400 |
0.28 |
|
| MI-120-0120 |
7/16" |
0.75" |
4.63" |
0.65" |
0.55" |
540 |
0.41 |
|
| MI-120-0140 |
15/32 |
0.87" |
5.50" |
0.80" |
0.60" |
740 |
0.58 |
|
| MI-120-0160 |
1/2" |
0.90" |
6.25" |
0.95" |
0.61" |
900 |
0.79 |
|
|
