Malpass, Inc. has been supplying United States Naval ships and submarines and Coast Guard vessels with repair parts since 1980

Swagers - Drop Forged

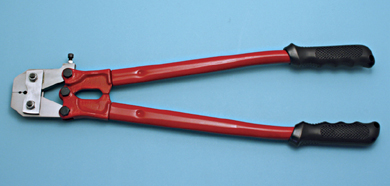

The Hand Swager is available in multiple lengths and features rubber handles for optimal gripping. This swager is used for swaging aluminum, copper and zinc plated copper oval and stop sleeves. It also has a wire rope cutter built-in.
ITEM	SIZE (length)	SWAGES	WT (lb)	Order
E0113-0350	14"	1/16"-1/8"	2.55	Quantity:
E0113-0600	24"	1/16"-3/16"	6.35	Quantity:
E0113-0700	30"	5/32"-1/4"-5/16"	9.80	Quantity:

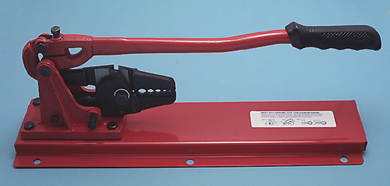

BENCH SWAGER

The Bench Swager features a rubber handle for optimal gripping and a built-in wire rope cutter. This swager is used for swaging aluminum, copper and zinc plated copper oval and stop sleeves.

The Mini Hand Swager features a rubber handle for optimal gripping and swages 1/8" and 3/16" wire rope. This swager crimps the hand swage studs onto the wire rope quickly and easily. Use hole #1 on 1/8" wire and hole #2 on 3/16" wire.

ITEM	SIZE (length)	SWAGES	WT (lb)	Order
E0113-H001	12"	1/8" and 3/16"	1.76	Quantity:

HAND SWAGER DROP FORGED ~ For Use With Hand Swage Series

ITEM	SIZE (length)	SWAGES	WT (lb)	Order
E0113-H600	24"	1/8" and 3/16"	6.35	Quantity:

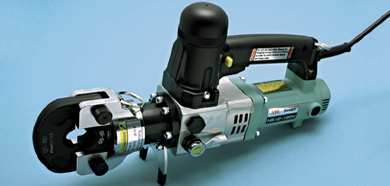

Electric Swager

The Standard Electric Swager is designed for use with swage sleeves and the Hand Swage Electric Swager is designed for use with the hand swage series. These swagers feature a switch lock/release button, trigger switch with auto-return, die opening lever and 180 degree head rotation.
Standard Electric Swager Is designed for use with Suncor’s Swage Sleeves (except S0750-0 Series). Hand Swage Electric Swager is designed for use with Suncor’s Hand Swage Series.
Swager Features Switch Lock/ Release Button, Trigger Switch with Auto-Return, Die Opening Lever and 180 Degree Head Rotation. Other Size Dies are available upon request.

HAND SWAGES SERIES
E0116-H000	Hand Swage Electric Swager 12v/120v + Set	16.50	Quantity:
