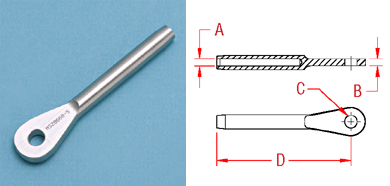

MIL. SPEC SWAGE EYE - STAINLESS STEEL |
These stainless steel swage fittings meet mil. spec #MS20668. They have met all quality and testing requirements per MIL-DTL-781 and are approved for listing in QPL-781. The swage eye is offered in a variety of sizes, ranging from 1/16" to 3/8".
THESE FITTINGS MEET MIL SPEC #MS20668 AND HAVE MET ALL QUALITY AND TESTING REQUIREMENTS PER MIL-DTL-781 AND ARE APPROVED FOR LISTING IN QPL-781. MACHINE SWAGE ONLY. |
| ITEM | A (wire) |
B | C | D | BEFORE (swage) |
AFTER (swage) |
Order |
|---|---|---|---|---|---|---|---|
| MI-20668-2 | 1/16" | 0.09" | 0.19" | 1.63" | 0.160" | 0.138" | |
| MI-20668-3 | 3/32" | 0.10" | 0.19" | 2.04" | 0.218" | 0.190" | |
| MI-20668-4 | 1/8" | 0.19" | 0.19" | 2.34" | 0.250" | 0.219" | |
| MI-20668-5 | 5/32" | 0.20" | 0.25" | 2.68" | 0.297" | 0.250" | |
| MI-20668-6 | 3/16" | 0.26" | 0.31" | 3.02" | 0.359" | 0.313" | |
| MI-20668-8 | 1/4" | 0.31" | 0.38" | 3.76" | 0.494" | 0.438" | |
| MI-20668-10 | 5/16" | 0.34" | 0.44" | 4.55" | 0.635" | 0.563" | |
| MI-20668-12 | 3/8" | 0.38" | 0.50" | 5.56" | 0.703" | 0.625" |
|
MIL. SPEC SWAGE FORK - STAINLESS STEEL |
These stainless steel swage fittings meet mil. spec #MS20667. They have met all quality and testing requirements per MIL-DTL-781 and are approved for listing in QPL-781. The swage fork is offered in a variety of sizes, ranging from 1/16" to 3/8".
THESE FITTINGS MEET MIL SPEC #MS20667 AND HAVE MET ALL QUALITY AND TESTING REQUIREMENTS PER MIL-DTL-781 AND ARE APPROVED FOR LISTING IN QPL-781. MACHINE SWAGE ONLY. |
| ITEM | A (wire) |
B | C | D | BEFORE (swage) |
AFTER (swage) |
Order |
|---|---|---|---|---|---|---|---|
MI-20667-2 |
1/16" |
0.09" |
0.19" |
1.57" |
0.160" |
0.138" |
|
MI-20667-3 |
3/32" |
0.11" |
0.19" |
1.95" |
0.218" |
0.190" |
|
MI-20667-4 |
1/8" |
0.20" |
0.19" |
2.35" |
0.250" |
0.219" |
|
MI-20667-5 |
5/32" |
0.20" |
0.25" |
2.67" |
0.297" |
0.250" |
|
MI-20667-6 |
3/16" |
0.26" |
0.31" |
3.07" |
0.359" |
0.313" |
|
MI-20667-8 | 1/4" | 0.31" | 0.38" | 3.81" | 0.494" | 0.438" |
|
MI-20667-10 | 5/16" | 0.35" | 0.44" | 4.44" | 0.635" | 0.563" |
|
MI-MS20667-12 | 3/8" | 0.38" | 0.50" | 5.33" | 0.703" | 0.625" |

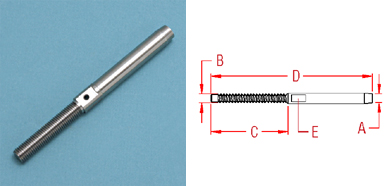

MIL. SPEC SWAGE STUD - STAINLESS STEEL UNF Thread |
These stainless steel swage fittings meet mil. spec #MS21259. They have met all quality and testing requirements per MIL-DTL-781 and are approved for listing in QPL-781. The swage stud is left and right hand UNF thread and offered in a variety of sizes, ranging from 1/16" to 3/8".
THESE FITTINGS MEET MIL SPEC #MS21259 AND HAVE MET ALL QUALITY AND TESTING REQUIREMENTS PER MIL-DTL-781 AND ARE APPROVED FOR LISTING IN QPL-781. ALL THREADS ARE �UNF�. MACHINE SWAGE ONLY. |
|---|
| ITEM | A (wire) |
B (thread) |
C | D | E (wrench flat) |
WT (lb) |
Order |
|---|---|---|---|---|---|---|---|
| RIGHT HAND, UNF | |||||||
| MI-21259-2RH | 1/16" | 0.14" | 1.05" | 2.47" | 0.16" | 0.01 | |
| MI-21259-3RH | 3/32" | 0.19" | 1.20" | 2.88" | 0.19" | 0.02 | |
| MI-21259-4RH | 1/8" | 0.25" | 1.38" | 3.33" | 0.25" | 0.04 | |
| MI-21259-5RH | 5/32" | 0.25" | 1.38" | 3.63" | 0.25" | 0.05 | |
| MI-21259-6RH | 3/16" | 0.31" | 1.45" | 4.00" | 0.31" | 0.08 | |
| MI-21259-8RH | 1/4" | 0.38" | 1.75" | 4.94" | 0.44" | 0.17 | |
| MI-21259-10RH | 5/16" | 0.50" | 2.00" | 5.84" | 0.63" | 0.38 | |
| MI-21259-12RH | 3/8" | 0.56" | 2.25" | 6.66" | 0.69" | 0.50 | |
| LEFT HAND, UNF | |||||||
| MI-21259-2LH | 1/16" | 0.14" | 1.05" | 2.47" | 0.16" | 0.01 | |
| MI-21259-3LH | 3/32" | 0.19" | 1.20" | 2.88" | 0.19" | 0.02 | |
| MI-21259-4LH | 1/8" | 0.25" | 1.38" | 3.33" | 0.25" | 0.04 | |
| MI-21259-5LH | 5/32" | 0.25" | 1.38" | 3.63" | 0.25" | 0.05 | |
| MI-21259-6LH | 3/16" | 0.31" | 1.45" | 4.00" | 0.31" | 0.08 | |
| MI-21259-8LH | 1/4" | 0.38" | 1.75" | 4.94" | 0.44" | 0.17 | |
| MI-21259-10LH | 5/16" | 0.50" | 2.00" | 5.84" | 0.63" | 0.38 | |
| MI-21259-12LH | 3/8" | 0.56" | 2.25" | 6.66" | 0.69" | 0.50 | |

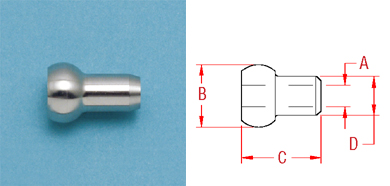

MIL. SPEC SINGLE SHANK BALL - STAINLESS STEEL |
These stainless steel swage fittings meet mil. spec #MS20664C. They have met all quality and testing requirements per MIL-DTL-781 and are approved for listing in QPL-781. The single shank ball is offered in a variety of sizes, ranging from 1/16" to 5/16".
THESE FITTINGS MEET MIL SPEC #MS20664 AND HAVE MET ALL QUALITY AND TESTING REQUIREMENTS PER MIL-DTL-781 AND ARE APPROVED FOR LISTING IN QPL-781. MACHINE SWAGE ONLY. |
| ITEM | A (wire) |
B | C | BEFORE (swage) |
AFTER (swage) |
Order |
|---|---|---|---|---|---|---|
| MI-20664C2 | 1/16" | 0.21" | 0.27" | 0.132" | 0.112" | |
| MI-20664C3 | 3/32" | 0.28" | 0.38" | 0.168" | 0.143" | |
| MI-20664C4 | 1/8" | 0.35" | 0.50" | 0.223" | 0.190" | |
| MI-20664C5 | 5/32" | 0.42" | 0.62" | 0.259" | 0.222" | |
| MI-20664C6 | 3/16" | 0.49" | 0.73" | 0.298" | 0.255" | |
| MI-20664C7 | 7/32" | 0.56" | 0.85" | 0.352" | 0.302" | |
| MI-20664C8 | 1/4" | 0.63" | 0.96" | 0.406" | 0.348" | |
| MI-20664C10 | 5/16" | 0.77" | 1.19" | 0.480" | 0.413" |

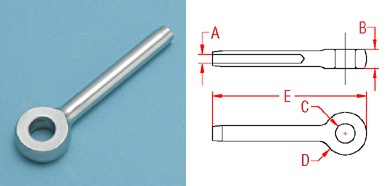

MIL. SPEC SPECIAL EYE - STAINLESS STEEL |
The Mil. Spec Special Eye is available to fit a 3/16" wire rope. These swage terminals meet all quality and testing requirements per MIL-DTL-781 and are approved for listing in QPL-781. They are made from stainless steel for corrosion resistance and durability.
THIS FITTING HAS MET ALL QUALITY AND TESTING REQUIREMENTS PER MIL-DTL-781 AND ARE APPROVED FOR LISTING IN QPL-781. MACHINE SWAGE ONLY. |
| ITEM | A (wire) |
B | C |
D |
E | WT(lb) | Order |
|---|---|---|---|---|---|---|---|
| MI-3266-6 | 3/16" |
0.44" |
0.45" |
0.97" |
3.02" |
0.12 |

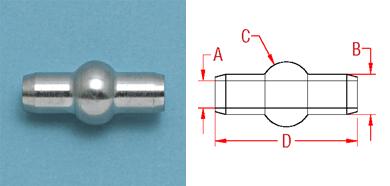

Mil. Spec Double Shank Ball - STAINLESS STEEL |
These stainless steel swage fittings meet mil. spec #MS20663. They have met all quality and testing requirements per MIL-DTL-781 and are approved for listing in QPL-781. The double shank ball is offered in a variety of sizes, ranging from 1/16" to 5/16".
THESE FITTINGS MEET MIL SPEC #MS20663 AND HAVE MET ALL QUALITY AND TESTING REQUIREMENTS PER MIL-DTL-781. |
| ITEM | A (wire) |
B BEFORE (swage) |
B AFTER (swage) |
C BEFORE (swage) |
C AFTER (swage) |
D | Order |
|---|---|---|---|---|---|---|---|
| MI-20663C2 | 1/16" | 0.127" | 0.112" | 0.207" | 0.190" | 0.36" | |
| MI-20663C3 | 3/32" | 0.163" | 0.143" | 0.277" | 0.253" | 0.53" | |
| MI-20663C4 | 1/8" | 0.218" | 0.190" | 0.345" | 0.315" | 0.69" | |
| MI-20663C5 | 5/32" | 0.254" | 0.222" | 0.419" | 0.379" | 0.85" | |
| MI-20663C6 | 3/16" | 0.293" | 0.255" | 0.487" | 0.442" | 1.01" | |
| MI-20663C7 | 7/32" | 0.347" | 0.302" | 0.555" | 0.505" | 1.18" | |
| MI-20663C8 | 1/4" | 0.401" | 0.348" | 0.624" | 0.567" | 1.34" | |
| MI-20663C10 | 5/16" | 0.475" | 0.413" | 0.763" | 0.694" | 1.66" |
